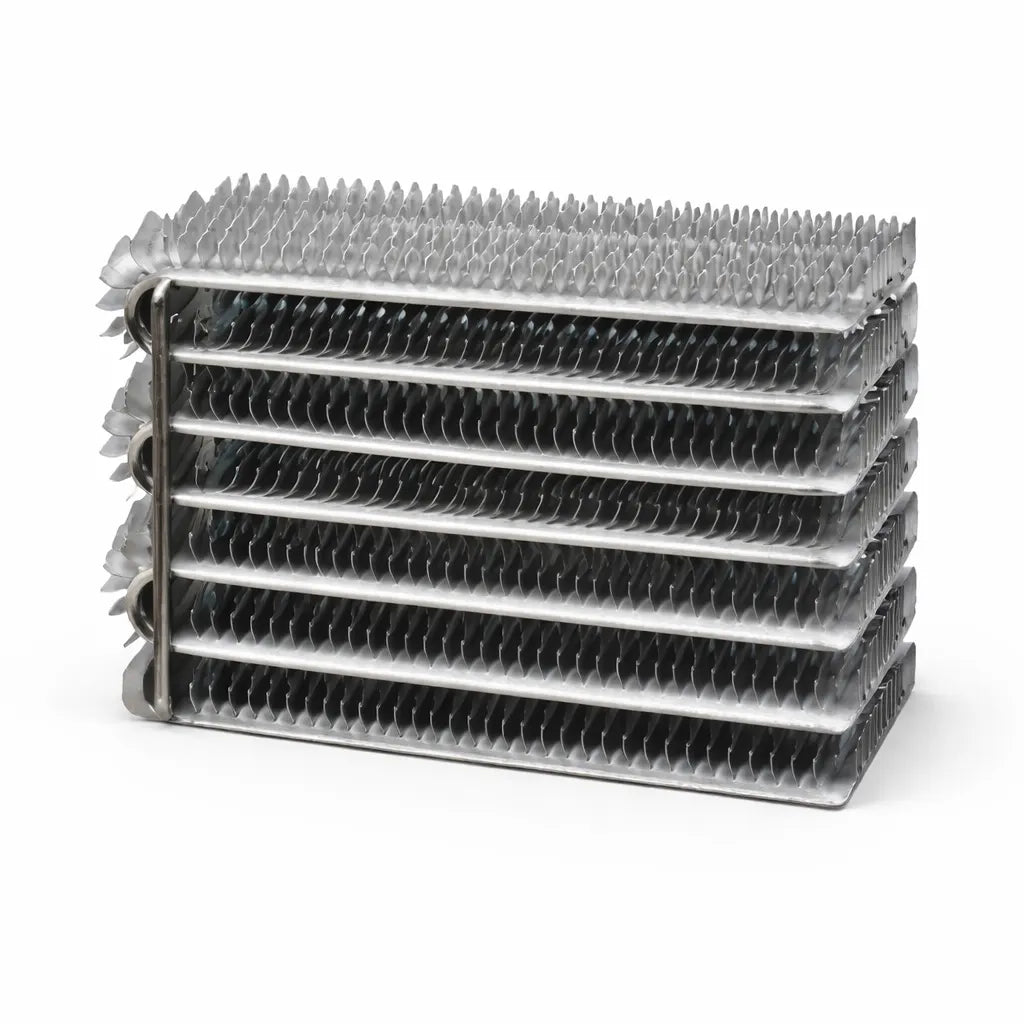

Condenser vs Evaporator in Refrigeration

Mehwish Nazim

Condenser vs Evaporator in Refrigeration: Complete Beginner Guide

Refrigeration systems are used everywhere, from household refrigerators to large industrial cold storage units. At the center of every system are two key components: the condenser and the evaporator. These parts are responsible for managing heat transfer, which is the main reason cooling is possible.

Instead of creating cold air, a refrigeration system removes heat from one place and releases it somewhere else. The evaporator handles heat absorption, while the condenser releases that heat outside. This continuous cycle keeps the system running efficiently and maintains the required temperature.

Understanding the Role of the Evaporator

The evaporator is the component that directly produces the cooling effect inside a refrigeration system. It is usually installed inside the cooling space, such as a freezer, display unit, or cold room.

In this unit, the refrigerant enters as a low-pressure liquid and starts absorbing heat from the surrounding air or stored items. As it absorbs heat, the refrigerant changes its state into gas. This process lowers the temperature of the environment, making it suitable for storage or cooling purposes.

Once the refrigerant becomes gas, it moves forward in the system to continue the cooling cycle.

Understanding the Role of the Condenser

The condenser works as the heat removal unit of the system. It is normally placed outside the cooling area, where heat can easily be discharged into the surrounding environment.

When the refrigerant reaches the condenser, it is in the form of hot, high-pressure gas. The condenser helps release this heat into air or water, depending on the system design. As the heat is removed, the refrigerant turns back into liquid form.

This step is important because it prepares the refrigerant to repeat the cycle again, ensuring continuous cooling.

How Evaporator and Condenser Differ from Each Other

Even though both components are part of the same system and may look similar, their functions are completely opposite. The refrigerator evaporator is responsible for absorbing heat and creating a cooling effect, while the condenser releases that heat out of the system.

Their design may also vary depending on the application. In some systems, both use copper tubes and aluminum fins with fans for airflow. However, their placement, airflow direction, and internal arrangement are different based on their roles.

No matter the system type, whether it is refrigeration, air conditioning, or industrial cooling. the basic working principle remains the same: one absorbs heat, and the other removes it.

Design Differences and Practical Considerations

In real applications, refrigerator condensers and evaporators are designed differently based on usage and environment. While both may use similar materials like copper tubes and metal fins, their internal structure and configuration are not the same.

Evaporators often have wider spacing between fins to allow proper airflow and may include defrost systems to prevent ice buildup. Condensers, on the other hand, are designed to release heat efficiently and may have different tube arrangements and airflow patterns.

Fan operation is also different. Evaporators typically pull air through the coil, while condensers push air outward to release heat. These design differences help each component perform its specific function effectively.

Use in Walk-In Coolers and Freezers

In large cooling systems like walk-in coolers and freezers, both the condenser and evaporator play a critical role in maintaining stable temperature conditions. These systems require reliable components to handle continuous operation and varying load conditions.

Understanding the difference between a condenser and an evaporator helps in choosing the right refrigeration system and improving its performance. Both components are equally important, and their proper selection directly affects cooling efficiency, energy usage, and system durability.

If you are looking for high-quality refrigerator condensers manufacturers, our company, White eagle engineering Pvt Ltd provides durable and efficient solutions for refrigerators. We focus on precision manufacturing, consistent performance, and custom-built designs to match your requirements.
