Types of Condensers in Refrigeration (Complete Beginner-Friendly Guide)

Have you ever wondered how your refrigerator throws heat out while keeping everything inside cold? It may sound strange, but cooling actually works by removing heat. And the part that does this important job is called the condenser.

If the condenser is not working properly, the cooling system becomes weak, inefficient, or may even stop completely. That’s why understanding condensers is not just technical knowledge, it actually helps you choose the right system, improve performance, and save energy.

In this detailed guide, you’ll learn about the main types of condensers used in refrigeration, how they work, where they are used, and which one might be best for your needs.

Importance of Condenser

A condenser is a heat exchanger. Its job is to release heat from the refrigerant into the surrounding environment. Here’s how it works in simple terms:

The refrigerant first absorbs heat from inside the fridge or cooling space. Then it moves to the condenser in a hot, high-pressure gas form. Inside the condenser, this heat is removed, and the refrigerant changes back into a liquid. This liquid then continues the cycle to absorb more heat again. This continuous process is what keeps your refrigerator, freezer, or industrial cooling system running.

Main Types of Condensers in Refrigeration

There are three main types of condensers based on how they remove heat:

• Air-Cooled Condenser

• Water-Cooled Condenser

• Evaporative Condenser

Let’s understand each one in detail.

Air-Cooled Condenser

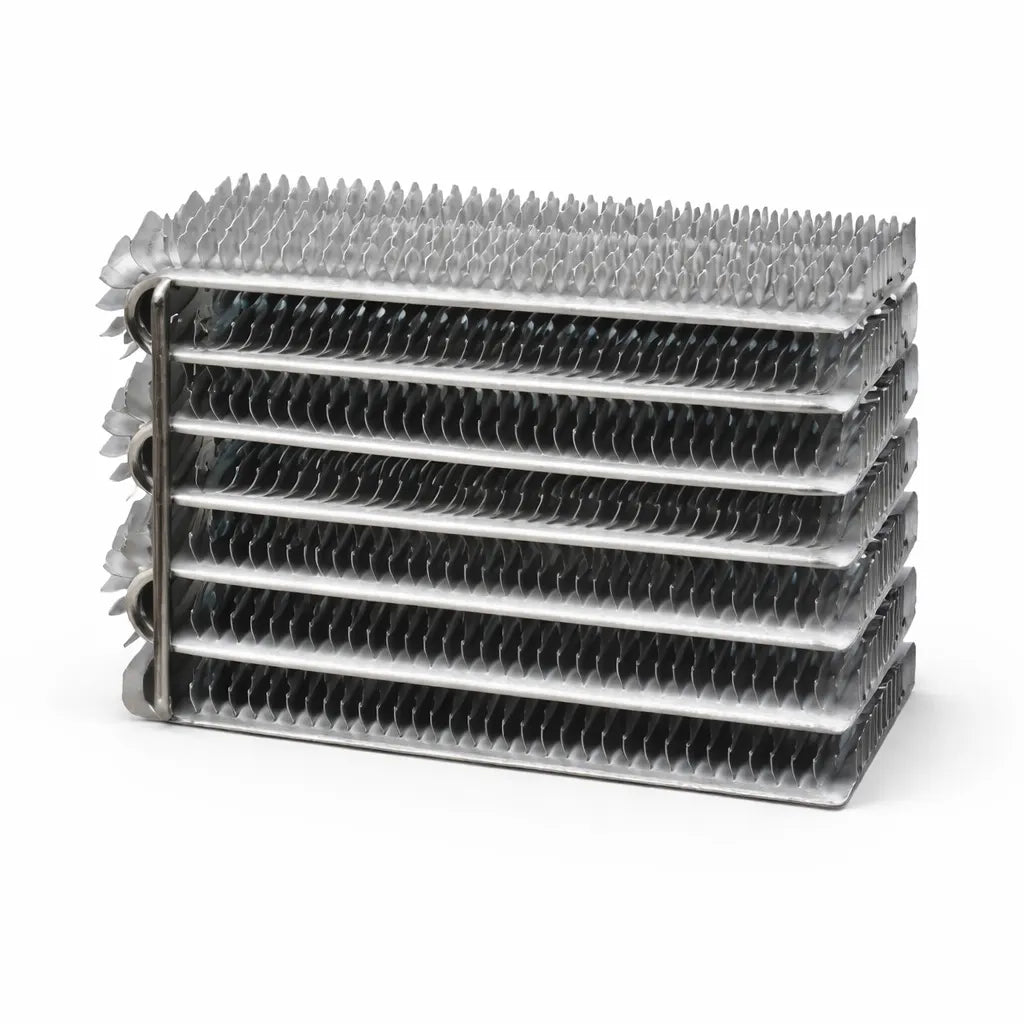

An air-cooled condenser uses surrounding air to remove heat from the refrigerant. It consists of coils (usually copper or aluminum) and fins that increase the surface area. A fan blows air over these coils, carrying the heat away.

This is the most commonly used condenser type, especially in household refrigerators, split air conditioners, and small commercial refrigeration units.

One of the biggest advantages of air-cooled condensers is simplicity. They do not require water, which makes installation easier and reduces operational complexity. Maintenance is also relatively simple, mostly cleaning the coils and ensuring proper airflow.

However, their performance depends heavily on the surrounding air temperature. In hot climates, like many regions in Pakistan, their efficiency can drop because the air used for cooling is already warm. This can lead to higher energy consumption and reduced cooling performance.

Air-cooled condensers are ideal for small to medium applications where water is not easily available and ease of use is important.

Water-Cooled Condenser

A water-cooled condenser uses water to remove heat instead of air. In this system, water flows through tubes or around coils, absorbing heat from the refrigerant.

There are different designs within this category, such as shell and tube, shell and coil, and tube-in-tube condensers, but the basic working principle remains the same, water carries away heat.

Water-cooled condensers are more efficient than air-cooled ones because water can absorb heat better than air. This makes them a strong choice for large-scale and industrial refrigeration systems.

They perform well even in high ambient temperatures, which is a big advantage in hot environments. Because of this, they are commonly used in factories, large cold storage units, and industrial cooling systems.

However, this efficiency comes with added requirements. These systems need a continuous water supply and often require a cooling tower to reuse and cool the water. Maintenance is also more complex, as water quality must be controlled to prevent scaling and corrosion.

Water-cooled condensers are best suited for large operations where performance is more important than simplicity.

Evaporative Condenser

An evaporative condenser combines the features of both air-cooled and water-cooled systems. It uses both air and water together to remove heat.

In this system, water is sprayed over the condenser coils while a fan blows air through them. As the water evaporates, it absorbs a large amount of heat, making the cooling process very efficient.

Because of this combined method, evaporative condensers are often more energy-efficient than both air-cooled and water-cooled types. They can achieve better performance while using less energy.

These condensers are widely used in industrial refrigeration, cold storage warehouses, food processing plants, and large HVAC systems.

However, like water-cooled systems, they require proper water management. Regular maintenance is needed to prevent scaling, bacterial growth, and water loss. Installation is also more complex compared to simple air-cooled systems.

Evaporative condensers are ideal for businesses looking for high efficiency and long-term energy savings, especially in large-scale operations.

Key Differences Between the Three Types Of Condensers

The main difference between these condensers is the medium they use to remove heat.

Air-cooled condensers use air, making them simple and low-cost but less efficient in hot weather. Water-cooled condensers use water, offering better performance but requiring more resources and maintenance. Evaporative condensers use both air and water, providing high efficiency but needing careful operation and upkeep.

Each type has its own place depending on the size of the system, environmental conditions, and budget.

Which Refrigerator Condenser Should You Choose?

Choosing the right condenser depends on your specific needs.

If you are running a small business or need a simple refrigeration solution, an air-cooled condenser is usually enough. It is easy to install and maintain.

If your system is large and requires strong, consistent cooling, a water-cooled condenser may be a better option.

If you are looking for maximum efficiency and long-term energy savings, especially for industrial use, an evaporative condenser is often the best choice.

You should also consider factors like climate, water availability, space, and maintenance capability before making a decision.

Condensers are one of the most important parts of any refrigeration system, yet they are often overlooked. Understanding their types and working can help you make better decisions, improve system performance, and reduce operating costs.

At White Eagle Engineering, we specialize in manufacturing high-quality refrigeration condensers for refrigerators and supplying them to leading brands like Dawlance, Haier. From standard designs to fully customized OEM solutions, we focus on performance, durability, and efficiency.
If you are unsure which condenser is right for your business, it’s always best to consult with experts who understand your requirements.  For more details you can reach us out at
